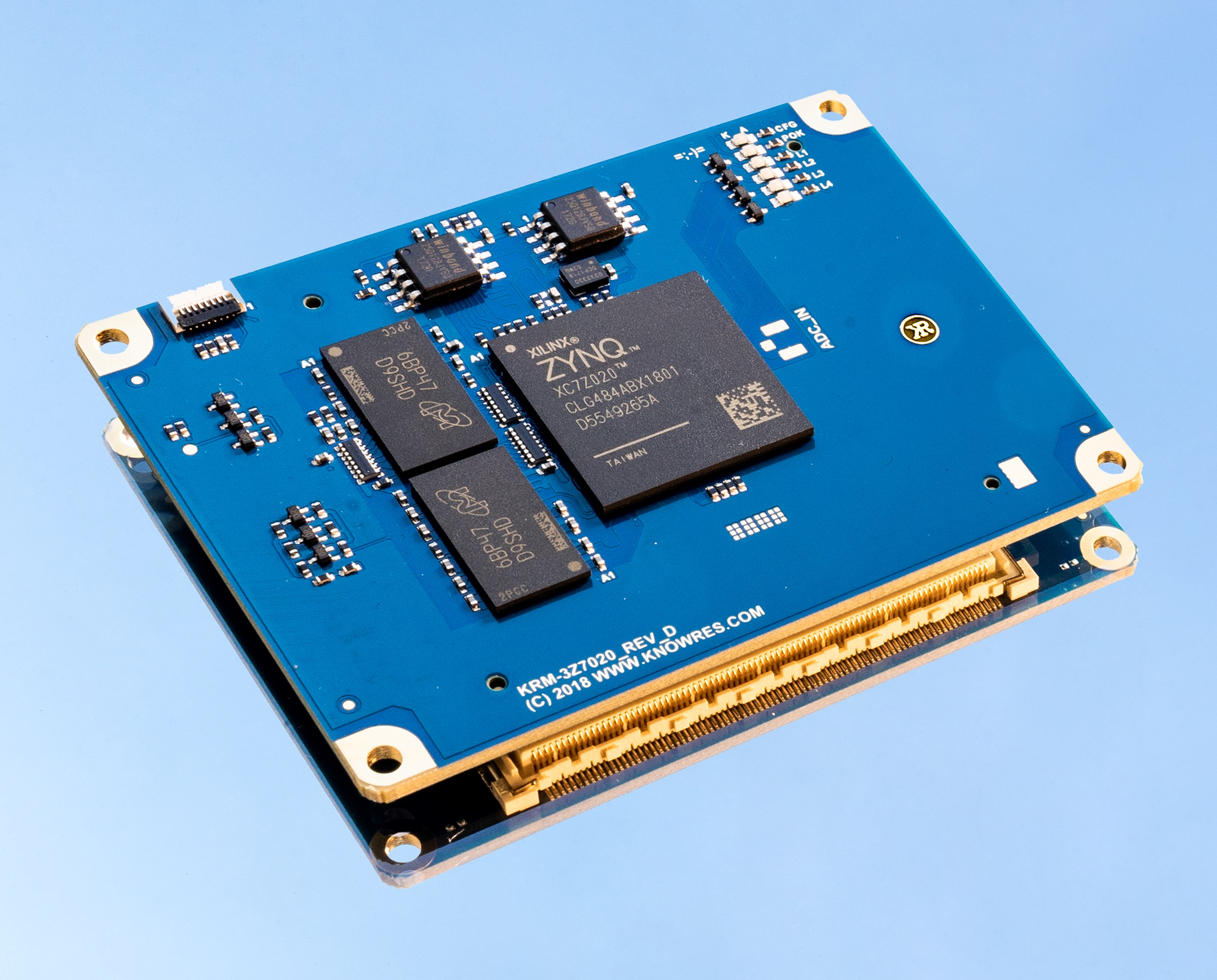

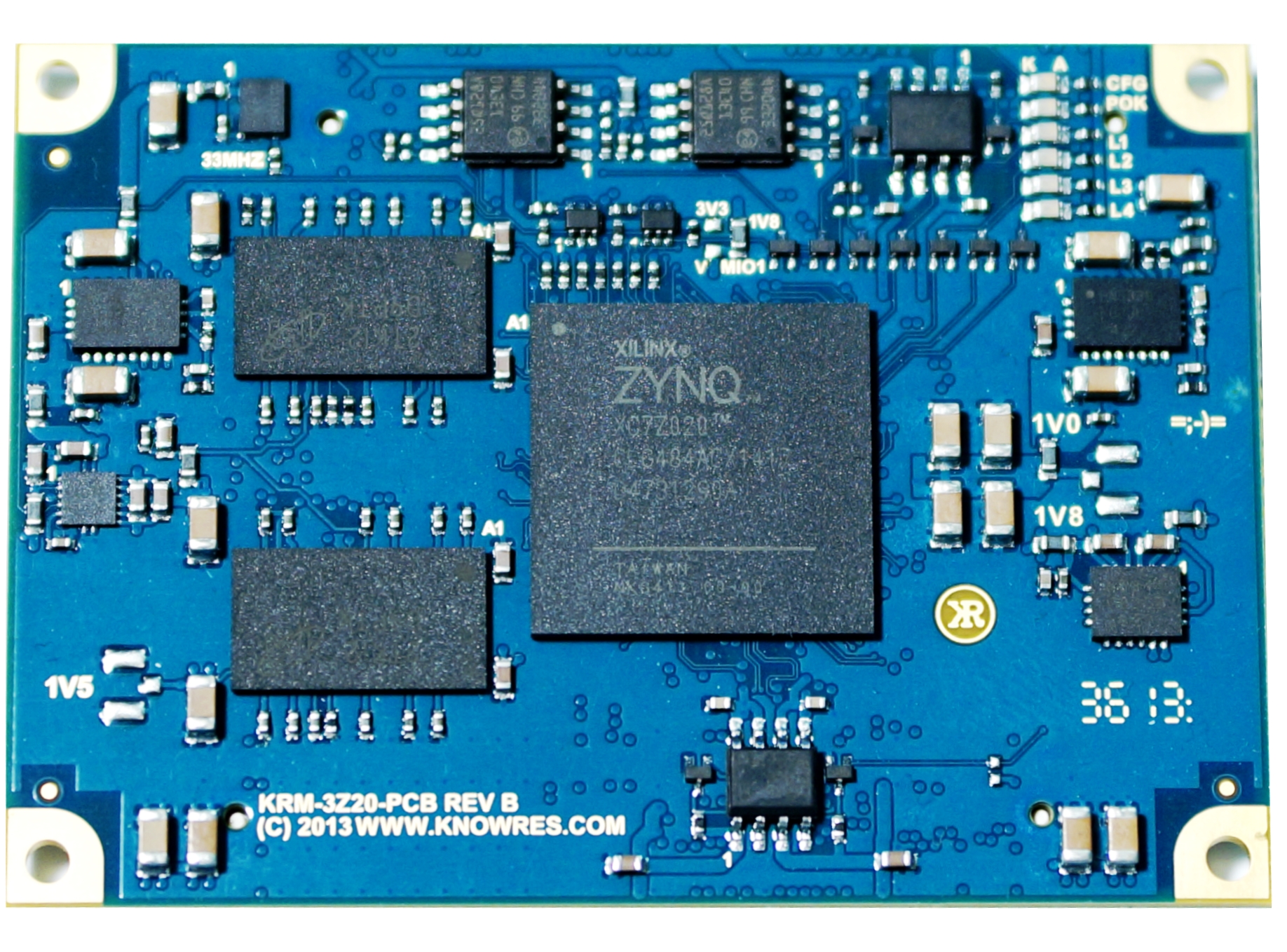

KRM-3Z20

Product Description

The KRM-3Z20 is a versatile Zynq based System on Module (SoM) with a 50mmx70mm form factor and virtually no special purpose pins => highest flexibility for user designs - PL 192 FPGA I/Os with user selectable bank voltages (4 Banks) - PS MIO 501 all signals available - 512 MB DDR III Ram - DUAL QSPI 128Mb for CFG and user data - 33.333 MHz refclock - All local power generated on board - 4 user LED - Heat spreader solution available - First of a family of compatible modules (FOM7050)

Key Features & Benefits

  • 192 PL IO
  • 512 MB DDRIII RAM
  • DUAL QSPI
  • FULLY ACCESSIBLE MIO 501
  • INDEPENDEND BANK VOLTAGES
  • SINGLE 3V3 Supply
  • optional HEAT SPREADER PLATE

What's Included

  • 192PL I/O
  • 38PS I/O
  • 4 User LED
  • 512MB DDRIII
  • Dual QSPI
  • STEP model
  • Schematic and PCB libraries (Altium)
  • ZYNQ 7Z020
