Sidekiq X2
作成者: Epiq Solutions

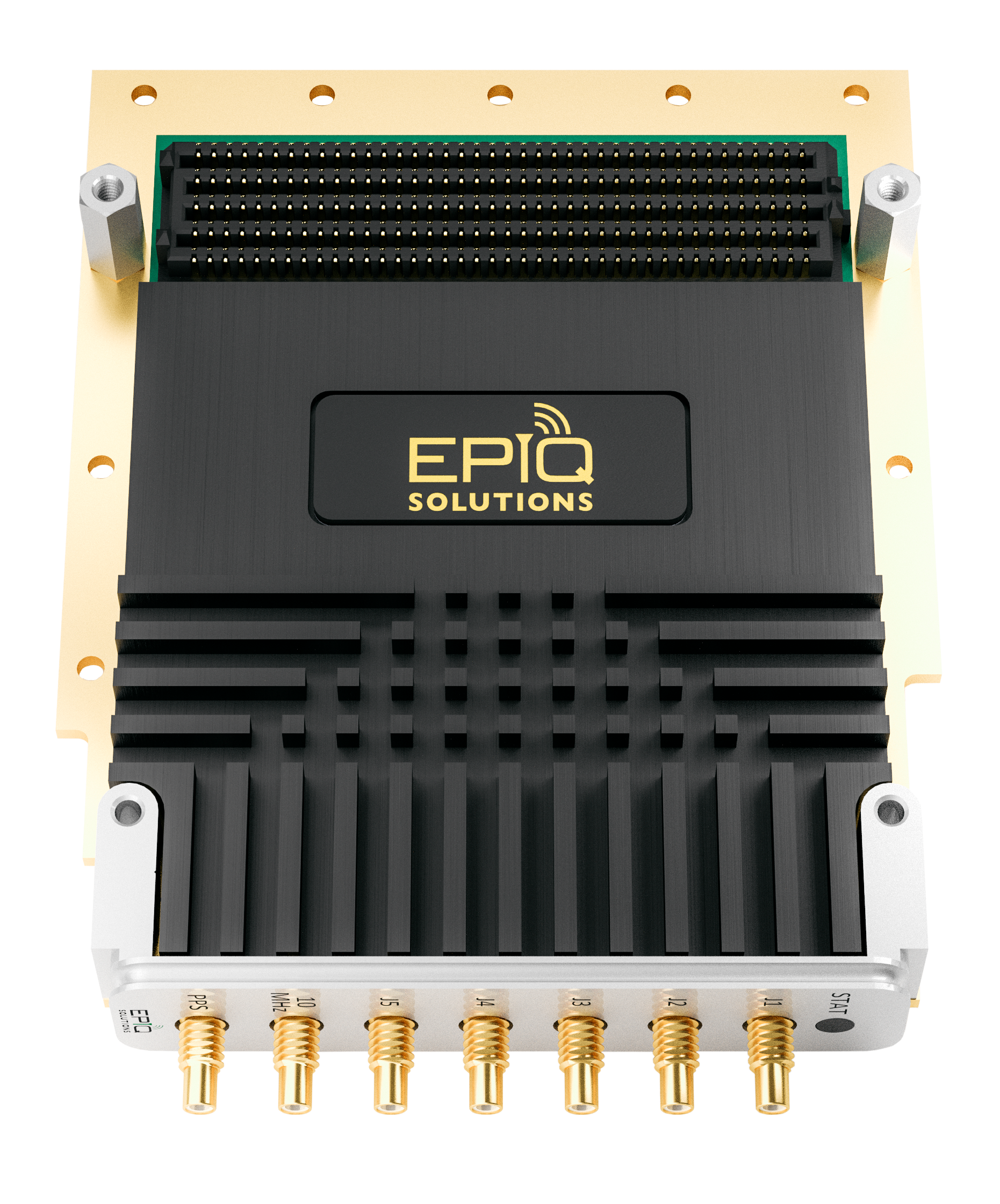

Sidekiq X2 is a multi-channel and highly configurable RF transceiver card in the standard FMC form factor (HPC).
主な機能と利点
- FPGA Mezzanine Card (FMC), VITA 57.1, with high pin count (HPC) interface
- Two phase coherent RF receivers (common LO) + third independently tunable RF receiver
- Two phase coherent RF transmitters (common LO)
- Continuous RF tuning range between 1 MHz and 6 GHz
- Configurable RF channel bandwidth up to 100 MHz per channel
- Seven band RF pre-select filters on all three Rx antenna ports
- Exceptional dynamic range with 16-bit A/D and 14-bit D/A converters
製品内容
- A Platform Development Kit (PDK) includes the following:
- FPGA reference design with source code
- Internal GPS Disciplined Oscillator (GPSDO)
- Sidekiq X2 FMC card
- Software libraries and sample test applications
- Thunderbolt 3 and 3U/6U VPX deployment options with COTS PCIe FPGA carriers
