ZingDVP

  • パーツ番号: ZingDVP
  • デバイス サポート:
  • ベンダー: V3 Technology, Ltd.
  • プログラム レベル: Certified

製品説明

The ZingDVP embedded vision kit is built on the Zynq-7045 SoC with seamlessly integrated HDMI (or Camera Link) input and output. ZingDVP enables customers to create well differentiated and powerful designs in the area of Machine Vision, VR and Video Analyzing. ZingDVP support the SDSoC™ development environment and provide verified SDSoC Platform that can support 2 HDMI 1080p60 input and 1 HDMI 1080p60 output.


主な機能と利点

  • 10/100/1000 Mbps Ethernet interface
  • 2 HDMI High Definition Input port, supporting 1080P camera
  • 4Gb eMMC Flash
  • 512MB DDR3 SDRAM(2*256MB)
  • HDMI High Definition Output port, supporting 1080P display
  • PCI Express 2.0 4x Interface with cable
  • TF Inerface, standard 8G memory card
  • USB2.0 OTG / USB Uart for Debug
  • USB3.0 Device port
  • Zynq-7000 XC7Z045-2FBG676

製品内容

  • 8GB TF card
  • GigE Ethernet Cable
  • USB2.0 Cable
  • Xilinx FPGA simulator
  • Xilinx SDSoC Tools license for 1 year (Original cost $995)

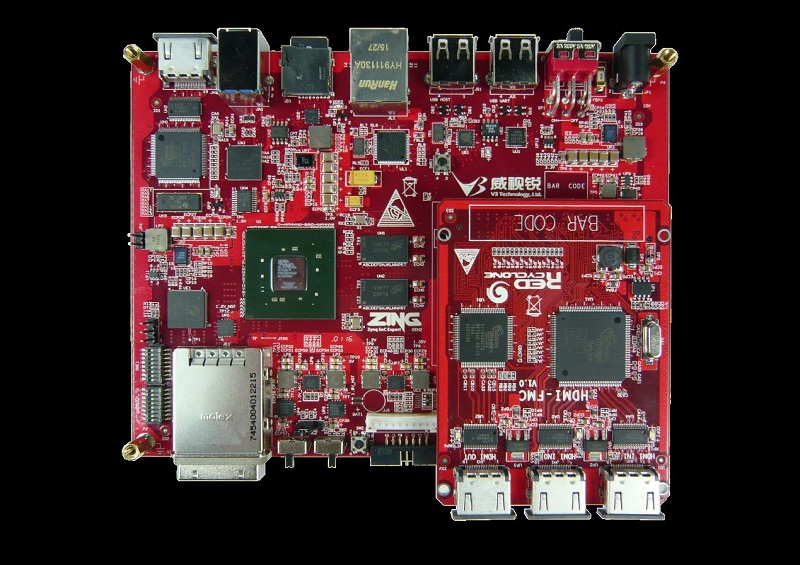

  • ZingDVP development board
