Smart Vision 開発キット

  • 価格: $895
  • パーツ番号: AES-Z7PZ-SVDK-G
  • デバイス サポート:
  • ベンダー: Avnet
  • Premier Alliance Member

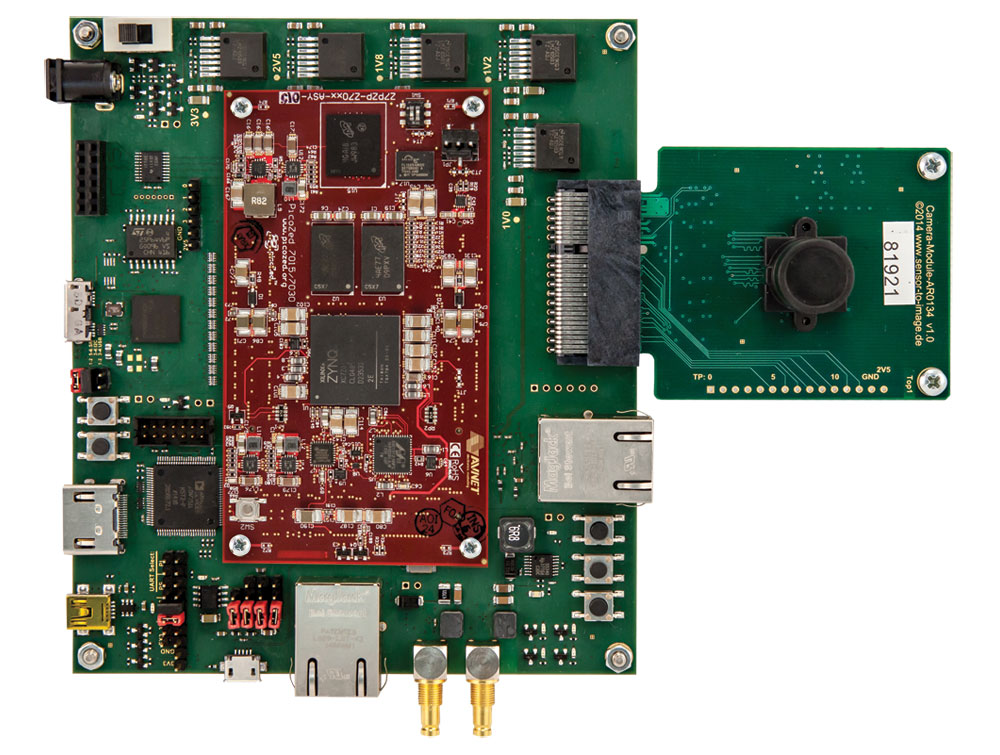

The Smart Vision Development Kit leverages the PicoZed System-On-Module (SOM) by providing a feature-rich, modular carrier card for machine vision applications. This kit provides all the necessary components to start development of embedded vision applications, including the PicoZed 7015 Zynq SOM, the Smart Vision Carrier Card, a 1.2MP Aptina camera module, power supply, various cables, and a 1-year license voucher for the Xilinx Vivado Design Edition software (device locked to the Zynq 7015). The Smart Vision Carrier Card provides several industry standard vision connectivity interfaces, including GigEVision, USB3Vision, and CoaXPress. The included Quick Start Guide will have you running the out-of-box design in less than 5 minutes. The Smart Vision kit also includes demonstration versions of several advanced software tools to help accelerate your embedded vision development.

The Smart Vision Development Kit is supported by the community website where users can download kit documentation and reference designs as well as collaborate with other engineers also working on SVDK designs.


  • PicoZed 7015T SOM
  • AIA and JIIA approved Sensor to Image Machine Vision Carrier Card
  • Sensor to Image GigEVision camera as frame grabber IP
  • Sensor to Image CoaXPress camera as frame grabber IP
  • Sensor to Image USB3Vision
  • Sensor to Image HDMI output reference design
  • Aptina 1.2MP camera module


  • Aptina 1.2MP camera module
  • Downloadable documentation and reference
  • Embedded Visual Applets – Demo
  • HALCONtrailrun – Demo Version
  • MicroUSB cable
  • PicoZed (Zynq-7015) SOM module
  • Sensor to Image Machine Vision Carrier Board
  • Universal Power Adapters
